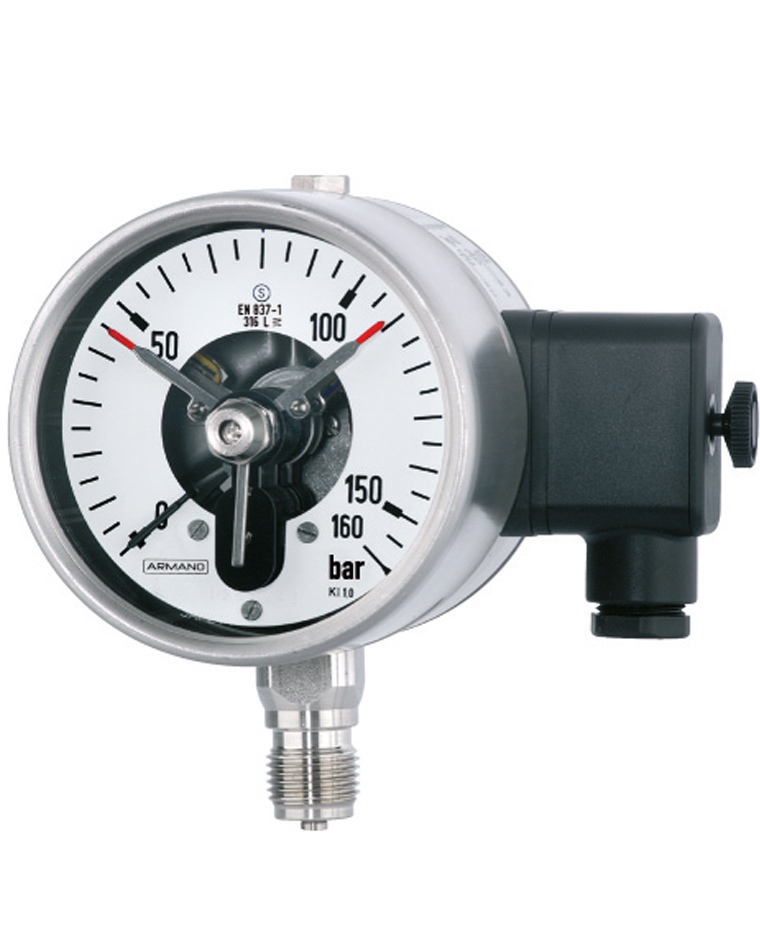

Bourdon tube pressure gauges with additional electrical accessory (data sheet 1600.90)
Safety category S3 according to DIN EN 837-1
The data sheet contains information on the maximum possible number of contacts, on electrical connections, ordering information and options concerning the models RSCh and RSChOe with limit switch contact assemblies (with low-action, magnetic, electronic or inductive contacts), as well as dimensional drawings with the position of the electrical connections.Data sheet 1600 contains all details concerning the available versions of models RSCh and RSChG without limit switches. These details as well as the required ordering information apply also to the version with limit switches, unless otherwise stated in data sheet 1600.90.
Instead of glycerin, a special oil is used for liquid-filled pressure gauges with limit switches. The model code for instruments with case filling is RSChOe.
model | RSCh / without case filling RSChOe / with case filling oil |
---|---|
case | stainless steel |
ring | bayonet ring, stainless steel |
accuracy class / nominal case size | 1.0 NCS 100, 160 (4", 6") |
wetted material | -1 copper alloy -3 stainless steel -6 Monel |
pressure ranges | 0-16 bar to 0-2500 bar (0-200 psi to 0-30000 psi) |
special equipment | limit switch contact assembly S/M, I, E or P |
