Standard pressure gauges (data sheet 1610)

Safety category S3 according to DIN EN 837-1

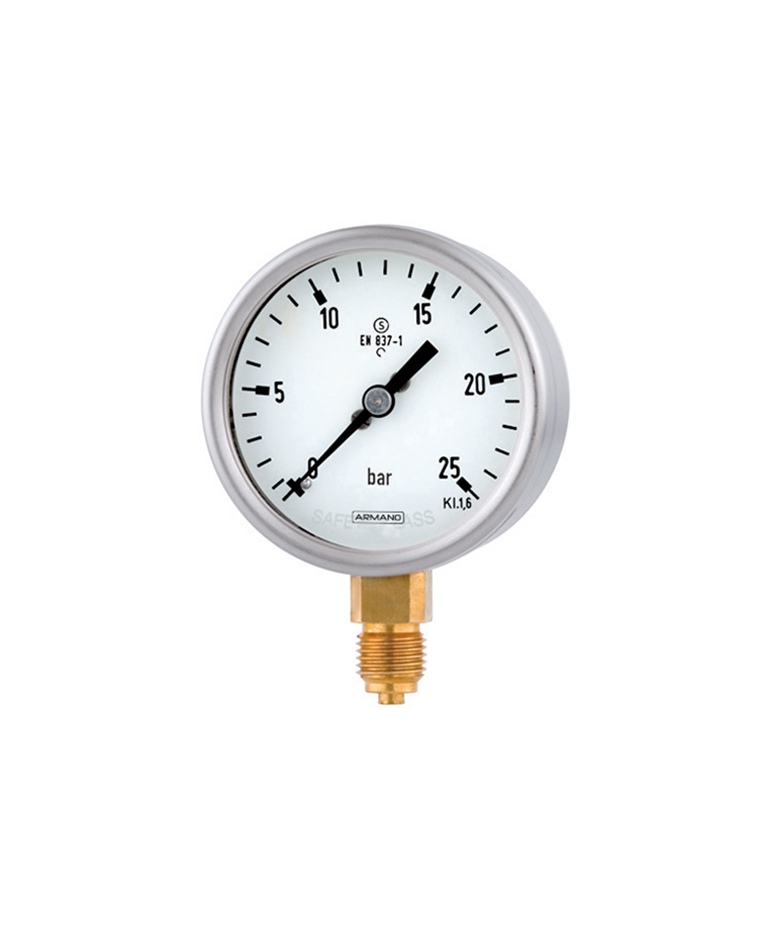

1610 Bourdon tube pressure gauges RSCh 63-1 25 bar bayonet ring case stainless steel, safety category S3 according to DIN EN 837-1 standard pressure gauges, mechanical pressure measuring instruments, pressure metrology by ARMANO

model RSCh    / without case filling
RSChG / with case filling
case stainless steel
ring bayonet ring
stainless steel
accuracy class / nominal case size 1.6 NCS 63 (2½")
2.5 NCS 63 (2½") for pressure ranges 0 – 600 bar and 0 – 1000 bar
wetted material -1 copper alloy
-3 stainless steel
-6 Monel
pressure ranges 0-0.6 bar to 0-1000 bar (0-10 psi to 0-15000 psi)
