Low cost pressure gauges (data sheet 1132)

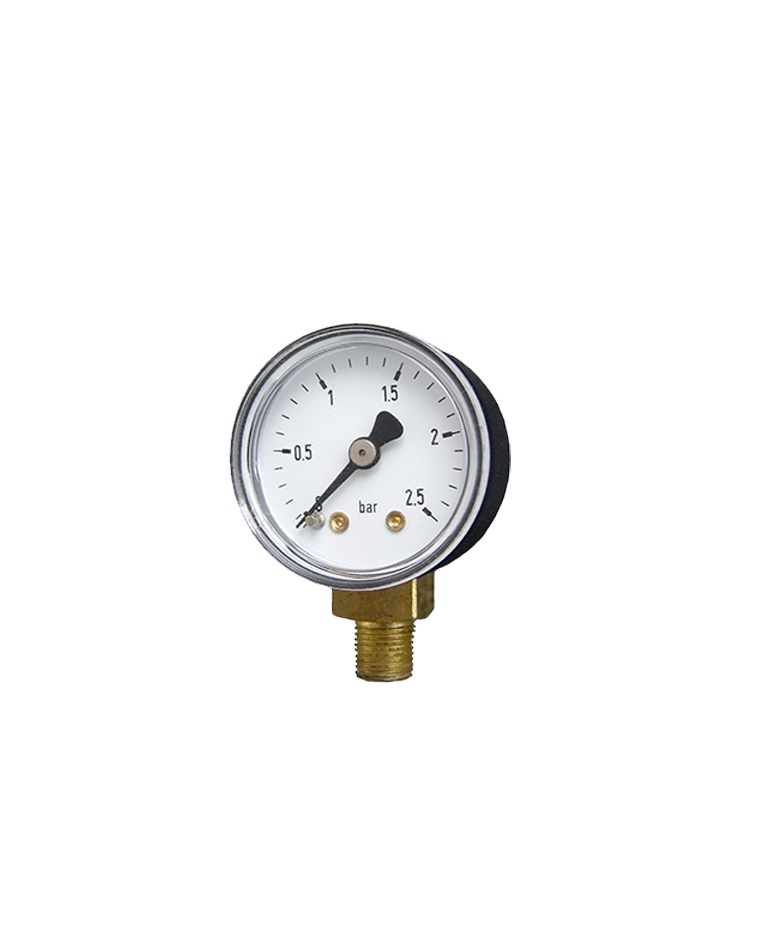

1132 Bourdon tube pressure gauges RE 40-1 2.5 bar carbon steel black, snap-in window, low-cost pressure gauges, without case filling, mechanical pressure measuring instruments, pressure metrology by ARMANO

model RE / without case filling
case / ring sheet steel black, snap-in window
accuracy class 1.6
class 2.5 for pressure range −1 / 0 bar, 0 – 1 bar, 0 – 600 bar
nominal case size 40 (1½"), 50 (2")
wetted material -1 copper alloy
pressure ranges NCS 40      0 – 1 bar to 0 – 400 bar
NCS 50      0 – 1 bar to 0 – 600 bar
