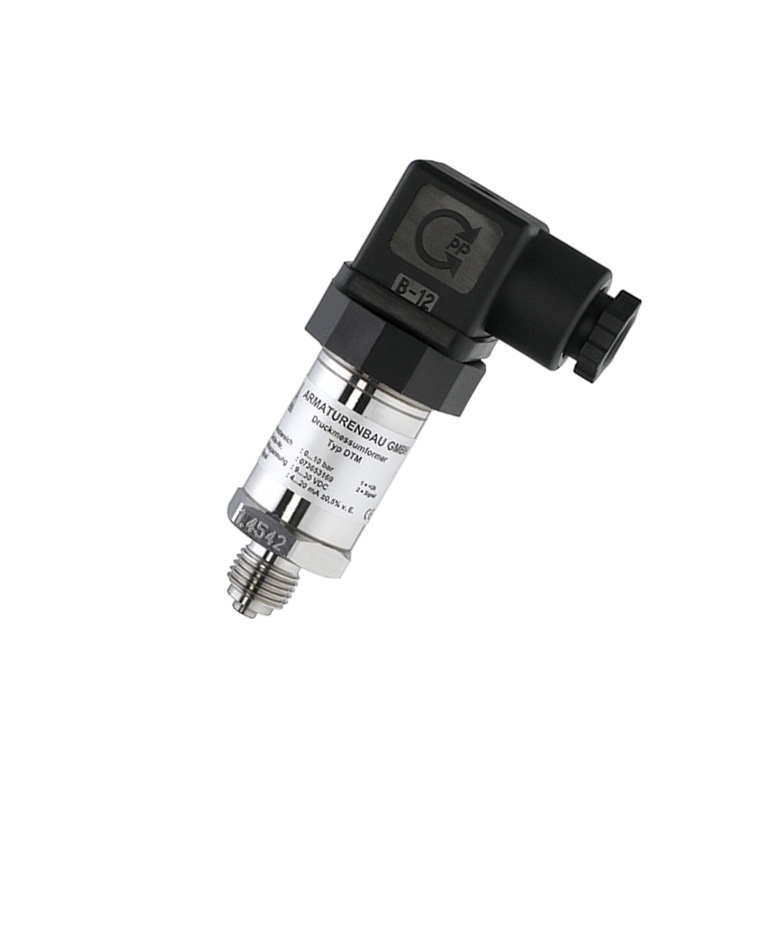

Pressure transmitter (data sheet 9830)
Analogue output signal
model | DTM |
---|---|
accuracy | better than ± 0.5 % |
special equipment | measuring cell welded |
measuring cell / sensor | thin film sensor, diaphragm made of 1.4548 (stainless steel), welded, placed inside |
output signals | 4-20 mA 0-20 mA 0-10 V DC |
measuring ranges | overpressure 0-10 bar to 0-2500 bar |
installation length | standard |
process connection | up to 1000 bar: G ¼ B made of 1.4542, from 1600 bar: high pressure connection M 16x1.5 female, made of 1.4548.4 |
