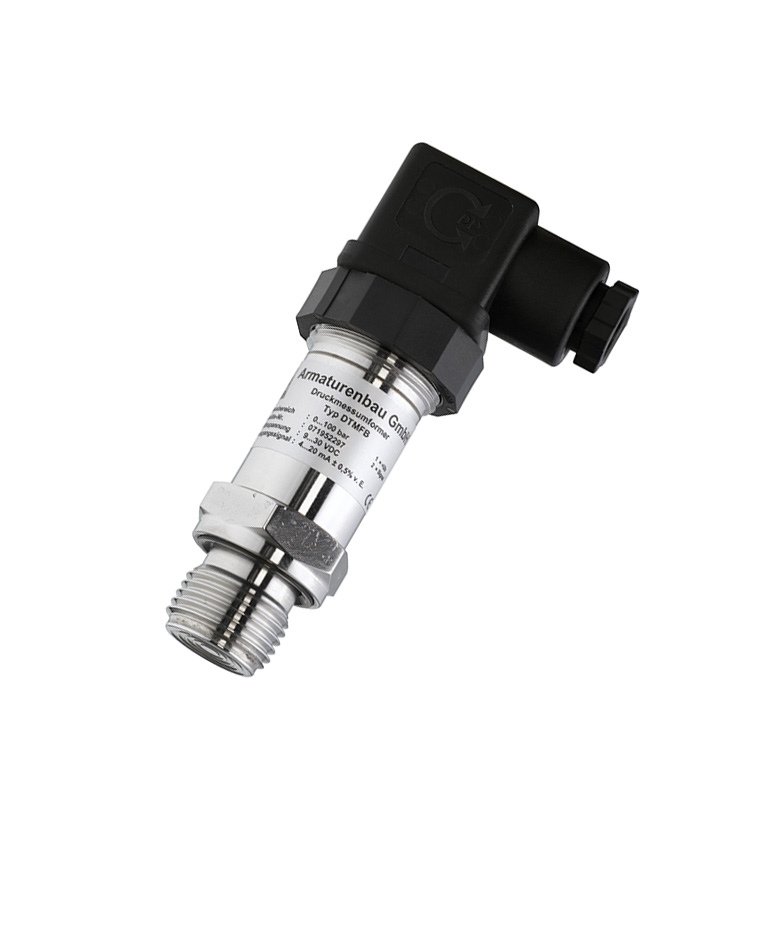

Pressure transmitters (data sheet 9830.3)
Analogue output signal
| model | DTMFB |
|---|---|
| accuracy | better than ± 0.5 % |
| special equipment | measuring cell welded, upstreamed integrated chemical seal unit with diaphragm flush welded made of 1.4435 (stainless steel), filling fluid white oil FN2 |
| measuring cell / sensor | thin film sensor, diaphragm made of stainless steel 1.4435, welded, placed inside |
| output signals | 4-20 mA 0-20 mA 0-10 VDC |
| measuring ranges | overpressure 0-10 bar to 0-1000 bar |
| installation length | standard |
| process connection | G ¼ B or G ½ B according to DIN 3852 Form E, made of stainless steel 1.4542, with sealing ring made of NBR |
