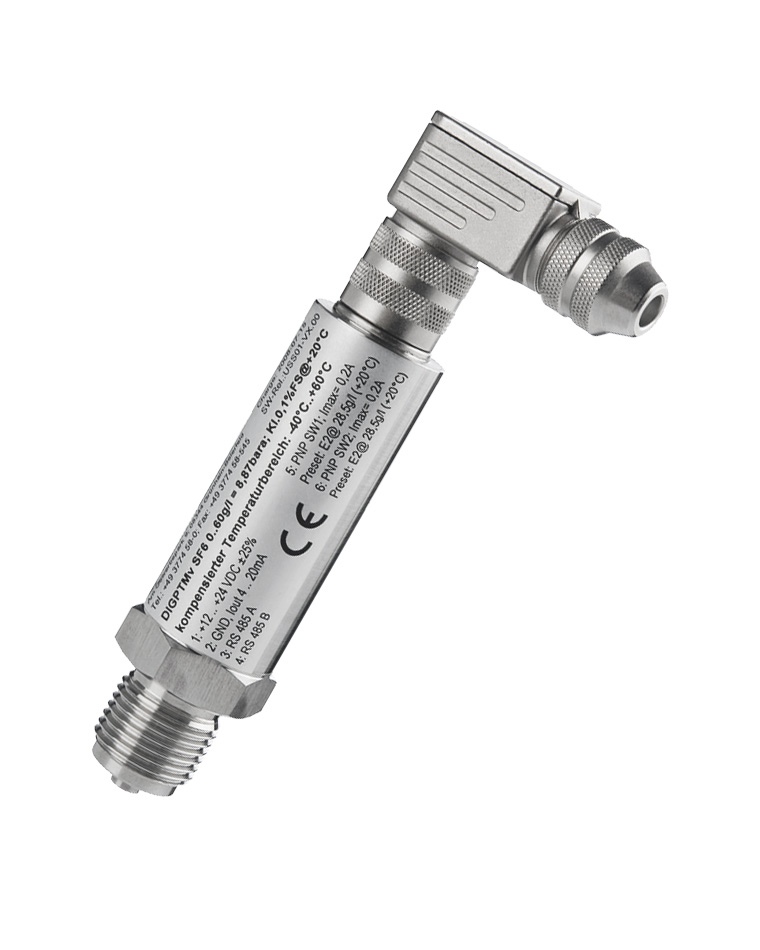

Digital precision transmitter (data sheet 9891)
Output signal digital
model | DIGPTMvSF6 |
---|---|
accuracy | better than ± 0.05 % |
special equipment | SF6-Gas density transmitter, diaphragm made of 1.4435 (stainless steel), welded, placed inside, 2 freely programmable switching outputs |
measuring cell / sensor | piezoresistive sensor, diaphragm made of 1.4435, welded, placed inside |
output signals | 4-20 mA |
measuring range | 0..60 g/l gas density SF6 for +20°C 0..10 bar abs. gas density SF6 for +20°C |
case | stainless steel |
process connection | G ½ B made of stainless steel |
For SF6 gas density measurements and monitoring of leakages in the field of high and medium voltage installations (GIS) at closed SF6-vessels for indoor and outdoor installations.
