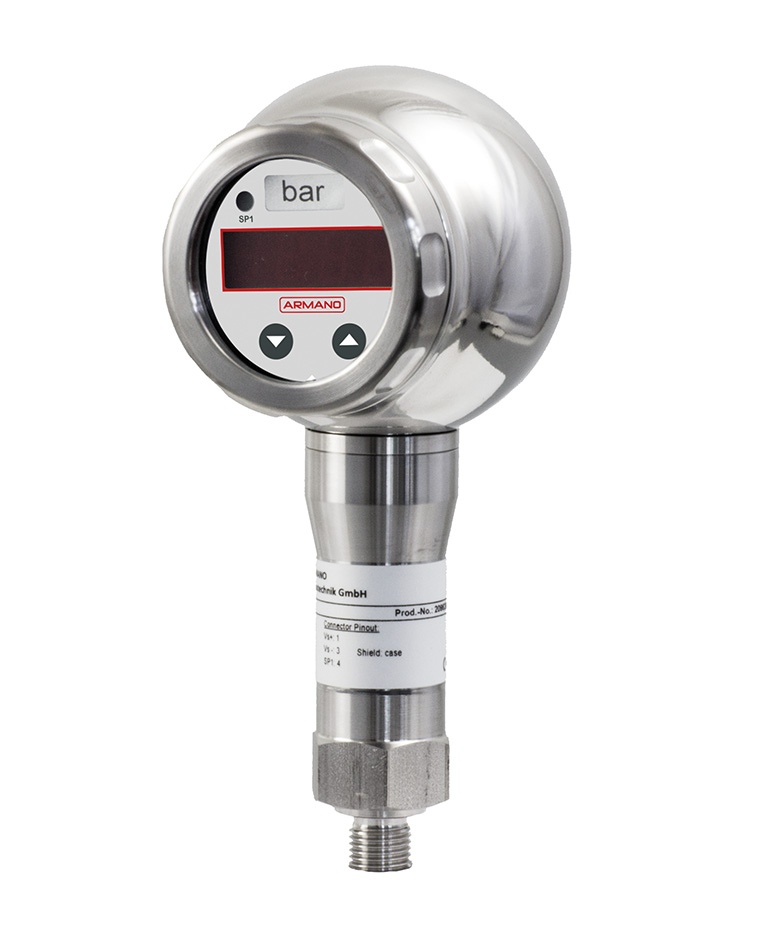

Electronic pressure switch PS 400 (data sheet 9622)
The electronic pressure switch PS 400 is a successful combination of pressure switch in a field housing and digital display. The pressure switch has been specially designed for numerous applications in various industrial sectors, e.g. plant engineering or environmental engineering.As standard, the PS 400 offers a rotatable display module and a PNP switching output, mounted in a rotatable field housing. Additional optional versions, such as a second switching output as well as an analogue output are available as well.
model | PS 400 |
---|---|
accuracy | max. switching current: 125 mA loadable, short-circuit proof; Uswitch = UB − 2 V switch point accuracy: ≤ ±0.25 % FSO repeatability: ≤ ±0.1 % FSO switching frequency: 2-wire: 10 Hz / 3-wire: 50 Hz switching cycles: > 100 x 106 |
special equipment | • sensor stainless steel 316L • case and display rotatable • LED display, 4 digits, 7 segment indication, digit height 10 mm (0.39") • output signal 4…20 mA / 2-wire • 1 or optionally 2 independent PNP switching outputs, freely configurable • analogue output (optional) • degree of protection IP67 |
measuring cell / sensor | stainless steel 316L |
output signals | 4…20 mA / 2-wire + 1 PNP switching output auxiliary energy: 0.05 % FS load impedance: ≤ 0.1 % FS response time: < 12 ms |
measuring range | 0 – 100 mbar to 0 – 600 bar |
case | field housing made of stainless steel 316L, degree of protection IP67 |
process connection | material: stainless steel 316L (1.4404) connection thread: G1⁄4 " (DIN 3852) |
