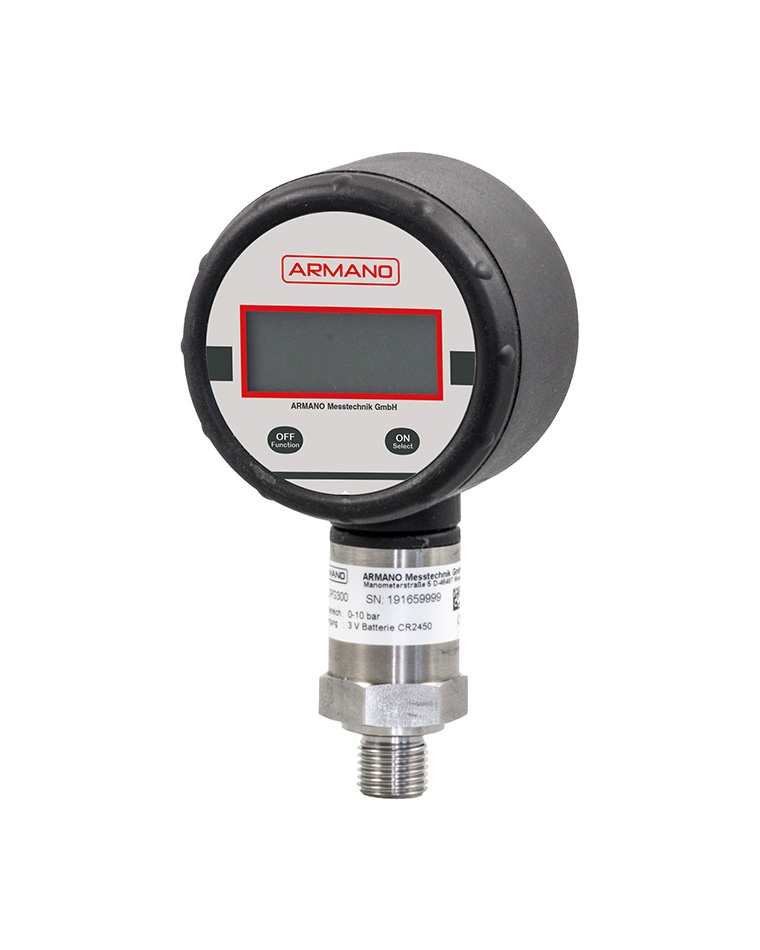

Digital pressure gauge DPG 300 (data sheet 9661)
The battery-operated digital pressure gauge DPG 300 is suitable for measuring and monitoring positive pressures of liquid and gaseous media for pressure ranges from 0 – 1.6 bar to 0 – 250 bar. A ceramic sensor serves as measuring element. The rotatable case is made of polycarbonate and has the degree of protection IP65. The digital pressure gauge is equipped with an integrated rotatable 4 1⁄2 digit display.A unit conversion for widespread units (bar, psi, Pa, MPa) has been integrated into the DPG 300. Additional functions are auto zero, min. / max. value with reset function, and an automatic switchoff.
model | DPG 300 |
---|---|
accuracy | ≤ ±0.5 % FS |
special equipment | • ceramic sensor • case and display rotatable • LC display, 4 1⁄2 digits, 7 segment indication, digit height 8.5 mm (0.33") • battery CR 2450, battery life > 1500 h in continuous operation • high burst pressures and high overload |
measuring cell / sensor | ceramic sensor made of Al2O3 96 % |
measuring range | 0 – 1.6 bar to 0 – 250 bar |
case | PA 6.6, polycarbonate, NCS 63 (2 1⁄2"), degree of protection IP65, rotatable |
process connection | material: stainless steel 304 (1.4301) connection thread: G 1⁄4" (DIN 3852), sealing FKM |
