Digital precision pressure gauge with exchangeable sensor modules (data sheet 9644)

The battery-operated digital pressure gauge models DPG 1031 are suitable for measuring positive and negative overpressures of gaseous or liquid media with spans up to 3000 bar.
The DPG 1031 has been specially optimised for flexible use in the service sector and as a pressure reference.

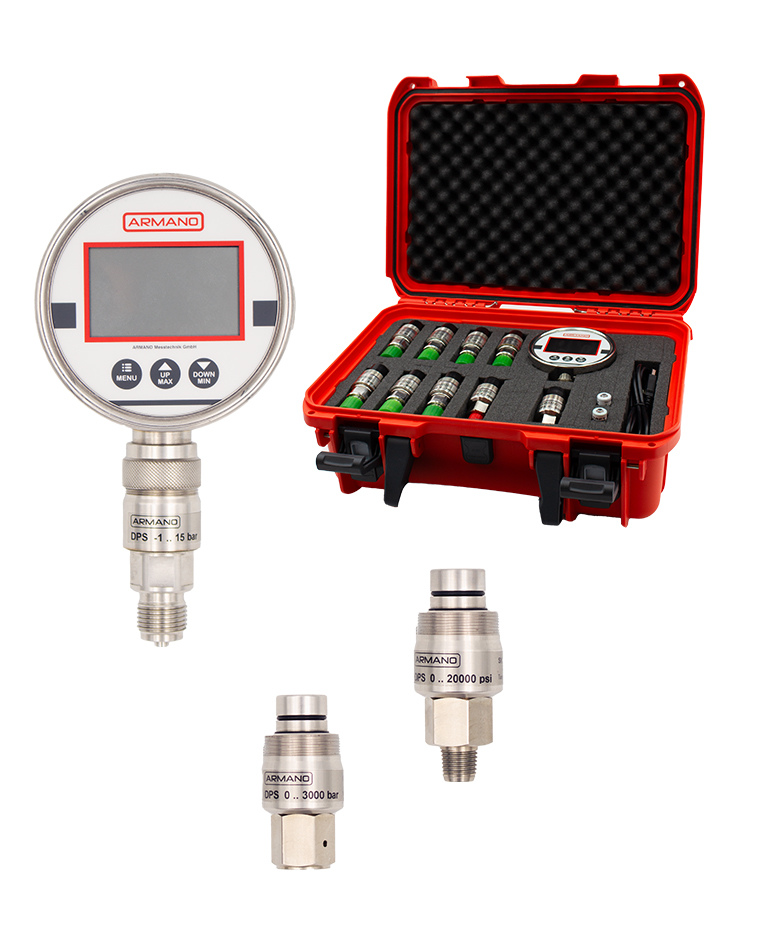

The special feature of this type is the separability of display and pressure sensor, which, in conjunction with an integrated sensor database, allows a wide variety of DPS pressure sensor modules to be connected to just one display device.
The variety of sensor modules in terms of measuring range, process connection and accuracy class opens up completely new, cost-optimised possibilities for the user.
The instrument head can be rotated by 360° on the pressure sensor module (without a stop), which makes it very easy to align the display after the process connection has been sealed.
The components are robust and guarantee IP65.
The high accuracy of the DPS pressure sensor modules and their fine-grained availability allow them to be used as customised reference devices for pressure device calibration in a very wide pressure range.
The “data logger” option with a measuring rate of up to 100 measurements per second is able to record the fastest pressure surges. With the USB interface included in the DPG 1031-L, the stored measurement data can be transferred for evaluation and archiving using the “LILLY-LOG” software.


model	DPG 1031 DPS 1031
accuracy	≤1000 bar: accuracy up to ±0.1 % FS >1000 bar: accuracy up to ±0.25 % FS
special equipment	with exchangeable sensor modules with portable case
measuring cell / sensor	≤200 bar: stainless steel 316L hermetically sealed, welded >200 – 1000 bar: stainless steel 316L, O-ring FKM >1000 bar: stainless steel 1.4548 (AISI 630 / 17-4PH), hermetically sealed, electron beam welding
measuring range	0 – 2.5 bar to 0 – 1000 bar: accuracy up to ±0.1 % FS 0 – 1600 bar to 0 – 3000 bar: accuracy up to ±0.25 % FS
case	with polished bayonet ring, stainless steel 304 (1.4301), NCS 100 (4"), degree of protection IP65, rotatable
process connection	material: stainless steel 1.4404 (1.4542) connection thread: G 1⁄2 B (DIN EN 837): ≤2500 bar 1⁄4" HPF 9⁄16" − 18 UNF: 0 – 3000 bar
