Limit switch contact assemblies for pressure gauges and thermometers (data sheet 9.1000)

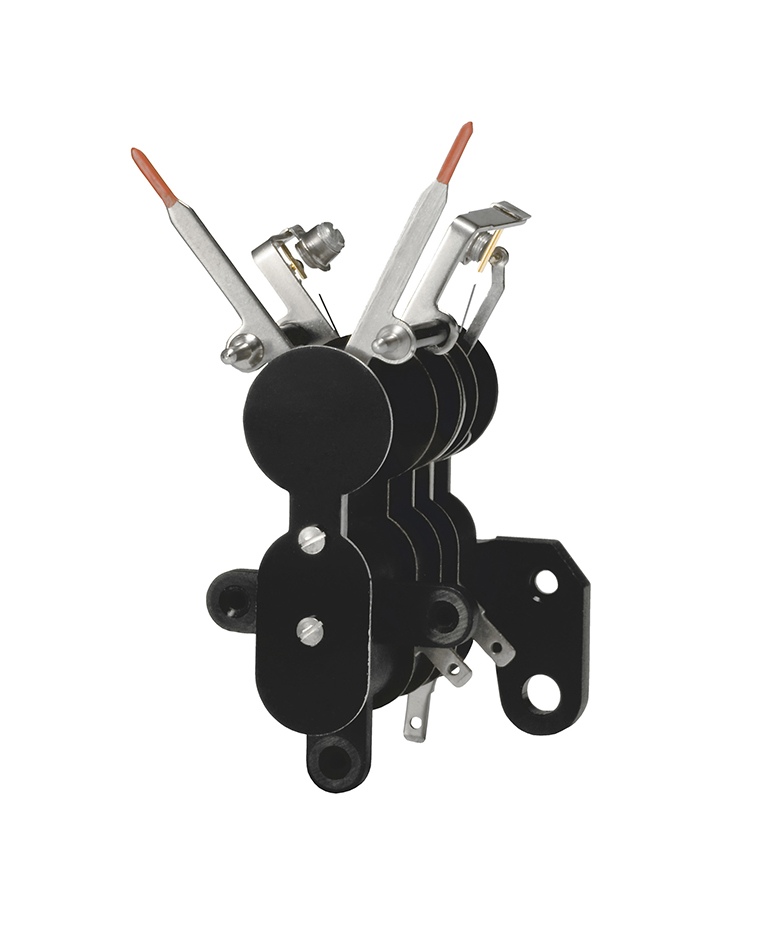

9.1000 Limit switch contact assemblies low-action contact contact gauges by ARMANO

model
(low-action contact)
application / operating conditions Low-action contacts are suitable, if
  • the instrument is being installed vibration-free and pulsations do not occur, as otherwise accidental switchings could occur.
  • the contact pins are not contaminated or do not oxidate, e. g. by aggressive atmosphere.
installation in case-Ø 63, 100, 160, 96x96 and 144x144
case filling Limit switch contact assemblies with low-action contacts can only be applied for instruments without case filling.
Ex-protection Possible by the use of intrinsically safe switch amplifiers model KF..-SR2. No marking according to ATEX, but a declaration of manufacturer.
