Thermocouples (data sheet 8630)

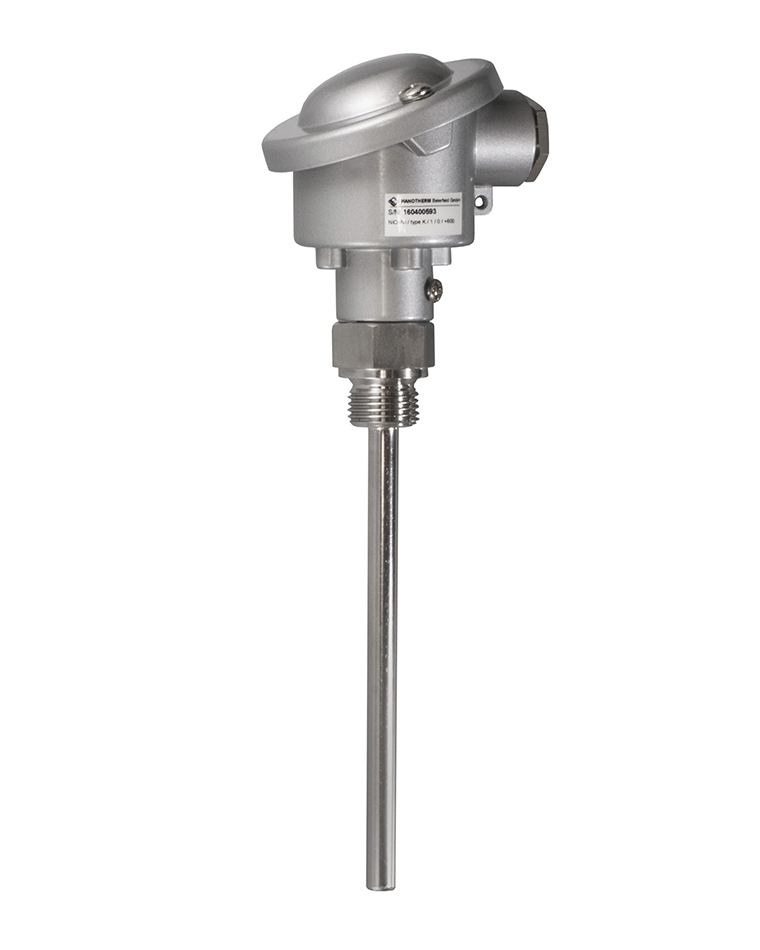

8630 Thermocouples TTeHoSrA with fabricated thermowell for screwing into the process measuring range up to 800 °C (1472 °F) ARMANO

model TTeHoSrA / TTeHoSrAT
installation for screwing into the process
construction type without neck tube
connection heads B, BUZ, BUZ-H
measuring element K, N, J, S according to DIN EN 60 584
measuring insert according to DIN EN 43 735, replaceable
operating temperature range up to +800 °C (+1472 °F)
degree of protection IP54
