Thermocouple – measuring inserts (data sheet 8661)

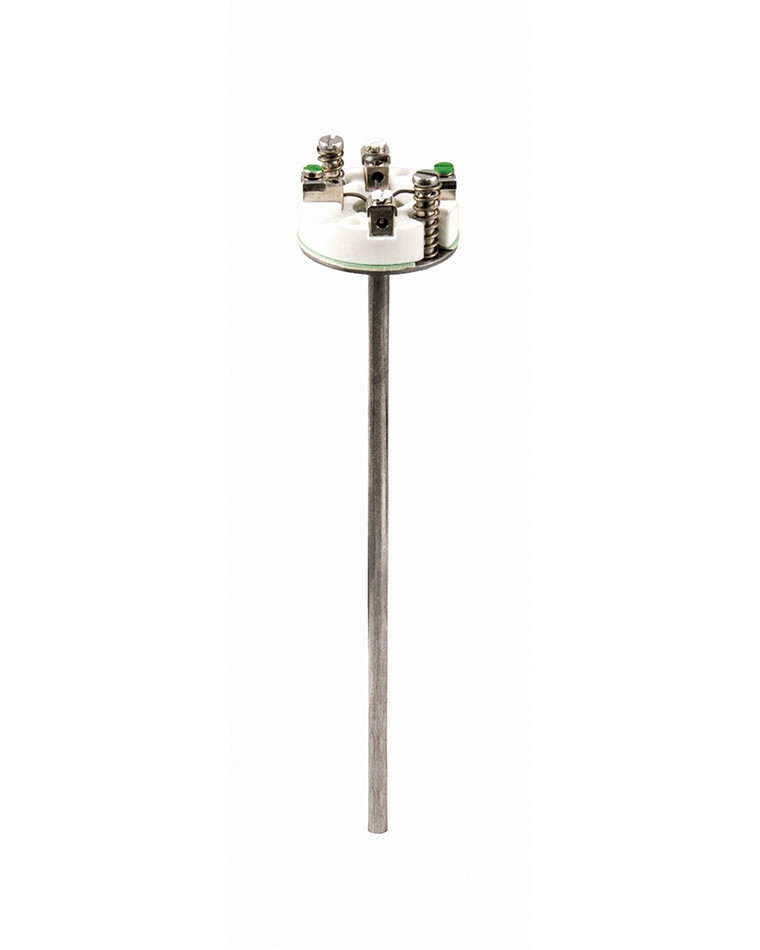

8661 Measuring inserts TTeMiAo with ceramic terminal block  green/white colour marking for thermocouples replacement part for the installation into connection heads ARMANO

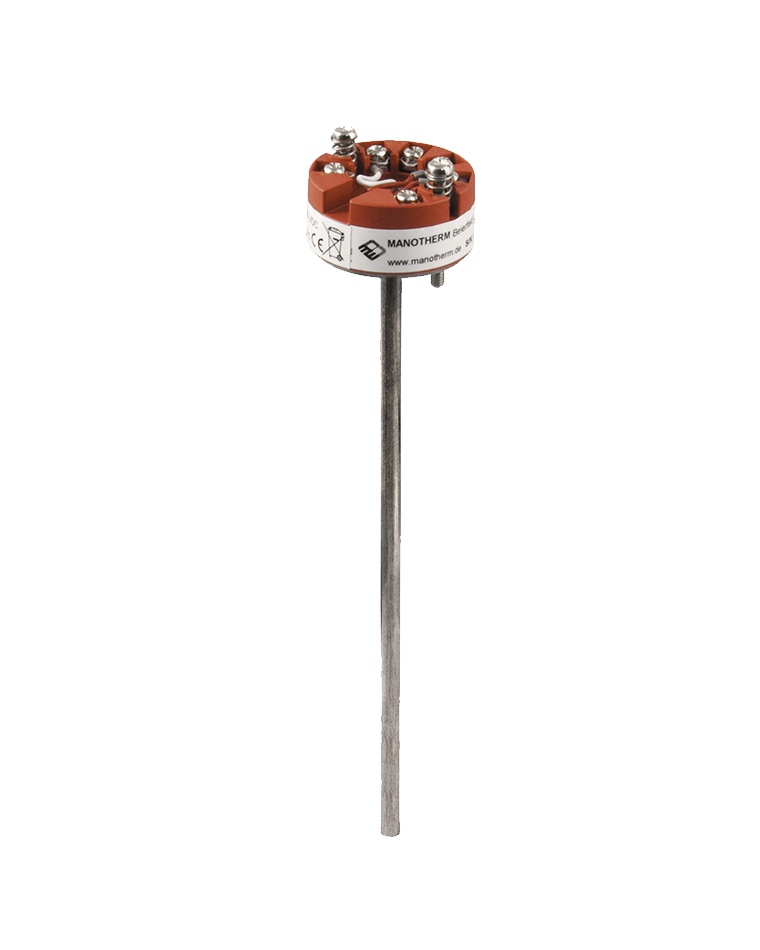

8661 Measuring inserts TTeMiAoT with red transmitter for thermocouples replacement part for the installation into connection heads ARMANO
model TTeMiAo / TTeMiAoT
measuring element K, N, J and S according to DIN EN 60 584
operating temperature range type K, NiCr-Ni          −40 / +1175 °C (−40 / +2147 °F)
type N, NiCrSi-NiSi  −40 / +1175 °C (−40 / +2147 °F)
type J, Fe-CuNi         −40 /   +750 °C (−40 / +1382 °F)
type S, Pt10Rh-Pt         0 / +1175 °C (+32 / +2147 °F)
ambient temperature range TTeMiAo: −40 / +100 °C (−40 / +212 °F)
TTeMiAoT: −40 / +85 °C (−40 / +185 °F)
accuracy class 1 according to DIN EN 60 584
degree of protection IP 00
measuring inserts are intended for the installation into protective fittings for electrical thermometers, which are equipped with an appropriate degree of protection for safe operation
output signal model TTeMiAo:     thermoelectric voltage acc. to DIN EN 60 584
model TTeMiAoT:   4...20 mA, HART® or PROFIBUS® PA /
                                 FOUNDATION™ Fieldbus
hot junction hot junction insulated
