Precision pressure controller / calibrator (data sheet 10461)

Automatic controllers

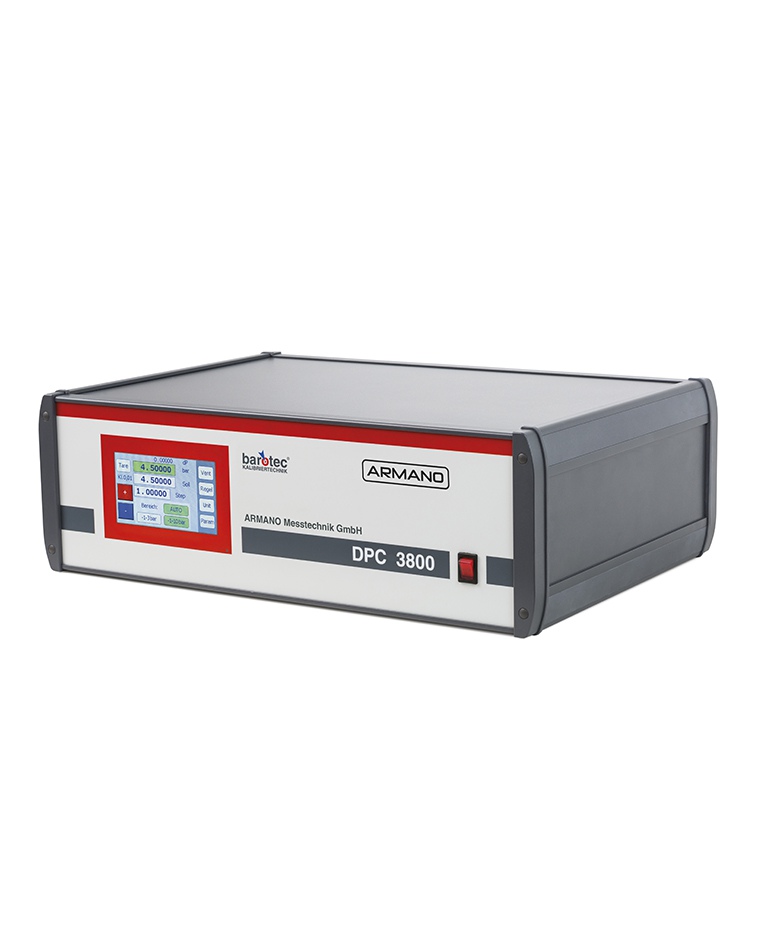

The modular controller DPC 3800 is equipped with up to three precision sensors and an optional barometric reference. The instrument is operated intuitively via touchscreen. Due to a measurement uncertainty of 0.01 % FS of the entire measuring chain and its control stability of 0.003 % FS, this instrument is perfectly suited for the automatic calibration of pressure measuring instruments.


10461 Precision pressure controller calibrator DPC 3800 barotec calibration technology pressure by ARMANO

model DPC 3800
version up to three pressure ranges
accuracy better 0.01 %
medium gas
pressure ranges
  • gauge pressure:        -1 / +1 bar to -1 / +100 bar
                                           (-30 inHg / +15 psi to -30 inHg / +1,500 psi)
  • absolute pressure:     0 – 1 bar to 0 – 100 bar
                                           (0 – 15 psi to 0 – 1,500 psi)
  • differential pressure: ± 30 mbar to ± 300 mbar
                                          (±1 inHg to ±10 inHg)
specialty
  • customised configurations of the pressure controller possible
  • very high measuring rate
  • colour touch screen, LED backlight
  • easily calibrated
  • modular construction
  • fully digital measuring instrument
  • automatic generation of test certificates via full version calibration software DynaCal
application
  • calibration laboratories
  • service industries and calibration services
  • laboratories for research and development
  • pressure gauge, pressure switch and sensor manufacturing as well as transmitter calibration and creation of certificates
  • long-term measurements
